Whiskey Lake-UE Boards Feature up to 15-year Availability

By Eric Brown

Congatec has launched a “Conga-TC370” COM Express Type 6 and two SBCs — the 3.5-inch “Conga-JC370” and thin Mini-ITX “Conga-IC370” — with new embedded “UE” 8th Gen chips with 10-year plus availability.

At Embedded World in early March, Congatec unveiled 3.5-inch Conga-JC370 and thin Mini-ITX Conga-IC370 SBCs with Intel’s 8th Gen Whiskey Lake U-series processors. Now, the German embedded firm has announced their availability along with a new Conga-TC370 COM Express Compact Type 6 module. The Linux-friendly boards sport Intel’s new embedded-focused UE versions of the chips, featuring 10-year plus availability.

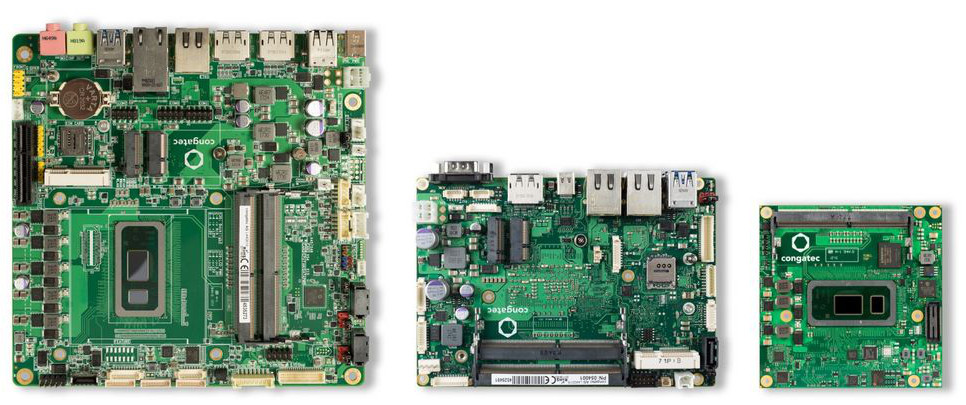

Congatec’s 8th Gen UE-series lineup (left to right): Conga-IC370, Conga-JC370, and Conga-TC370
(click image to enlarge)
This is the first we’ve heard of the Whiskey Lake UE models, which do not appear to be publicly documented. The processors appear to be otherwise identical with the 8th Gen U-series.

Congatec claims its new boards “are the first in the industry to offer long-term availability of 10+ years.” The boards offer “10+ and on basis of specific last time buy contract up to 15 years long-term availability right from the start,” stated Christian Eder, Congatec Director of Marketing. He noted that most embedded boards offer 7-year availability, which is insufficient for the transportation and mobility sector, as well as many medical devices, industrial controls, embedded edge clients, and HMI systems. Congatec’s 8th Gen Coffee Lake-H based Conga-TS370 Type 6 module goes longer than that, but is still limited to “up to” 10-year availability.

The new Congatec boards run Linux, Windows 10, or Win 10 IoT Enterprise on the following processors:

  • Core i5-8365UE (4x cores @ 1.6GHz, 6MB cache, 15W)
  • Core i7-8665UE (4x cores @ 1.7GHz, 8MB cache, 15W)
  • Core i3-8145UE (2x cores @ 2.2GHz, 4MB cache, 15W)
  • Celeron 4305UE (2x cores @ 2.0GHz, 2MB cache, 15W)

Congatec touts the quad-core i7 and i5 Whiskey Lake chips for their performance boost of up to 58 percent compared to previous U-Series processors. ASll the Whiskey Lake CPUs have an “improved microarchitecture” and provide “efficient task scheduling,” says the company. They also support RTS hypervisor software “to allow additional optimization of I/O throughput from the input channels to the processor cores.”

— ADVERTISMENT—

Advertise Here

The 24-EU Intel Gen9 HD graphics supports OpenCL 2.1, OpenGL 4.5 and DirectX12, as well as hardware MPEG-2 or WMV9 (VC-1) decode and H.265 (HEVC) support. All three of the Congatec boards support up to 3x independent 60Hz UHD displays with up to 4096 x 2304 resolution.

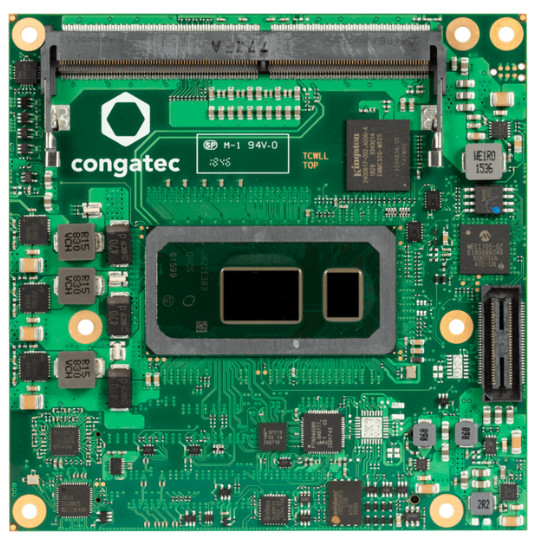

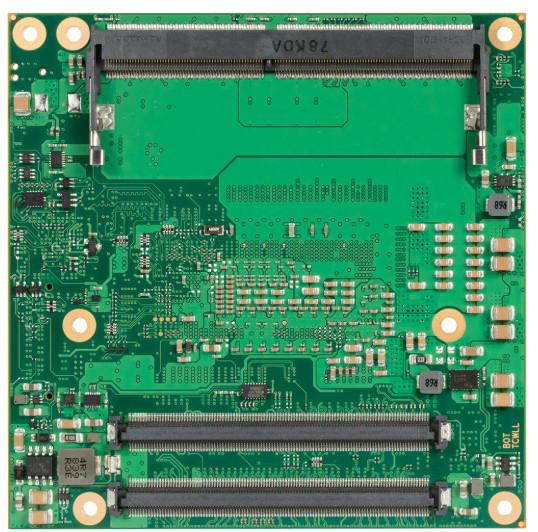

Conga-TC370, front and back
(click images to enlarge)
Common features among the Conga-TC370, Conga-JC370, and Conga-IC370 include support for up to 64GB DDR4-2400 via dual channels. They all provide native USB 3.1 Gen 2 for transfer rates of 10Gbps and offer Gigabit Ethernet with TSN (Time-Sensitive Networking) real-time support.

The new boards support 0 to 60°C temperatures and offer humidity resistance rated at “10 to 90% r. H. non cond.” They all ship with TPM 2.0 security and the Congatec Board Controller, which offers features like a multi-stage watchdog, power loss control, and hardware health monitoring.

Conga-TC370

Whereas the earlier, Coffee Lake-H based Conga-TS370 adopts the 125 x 95mm COM Express Basic Type 6 form factor, the Conga-TC370 is a 95 x 95 mm Compact Type 6 module. Features include an Intel i219LM GbE controller and interfaces including 3x SATA III, 8x PCIe Gen 3.0, 4x USB 3.1 Gen2, and 8x USB 2.0. There are also LPC, I2C, and 2x UART interfaces.

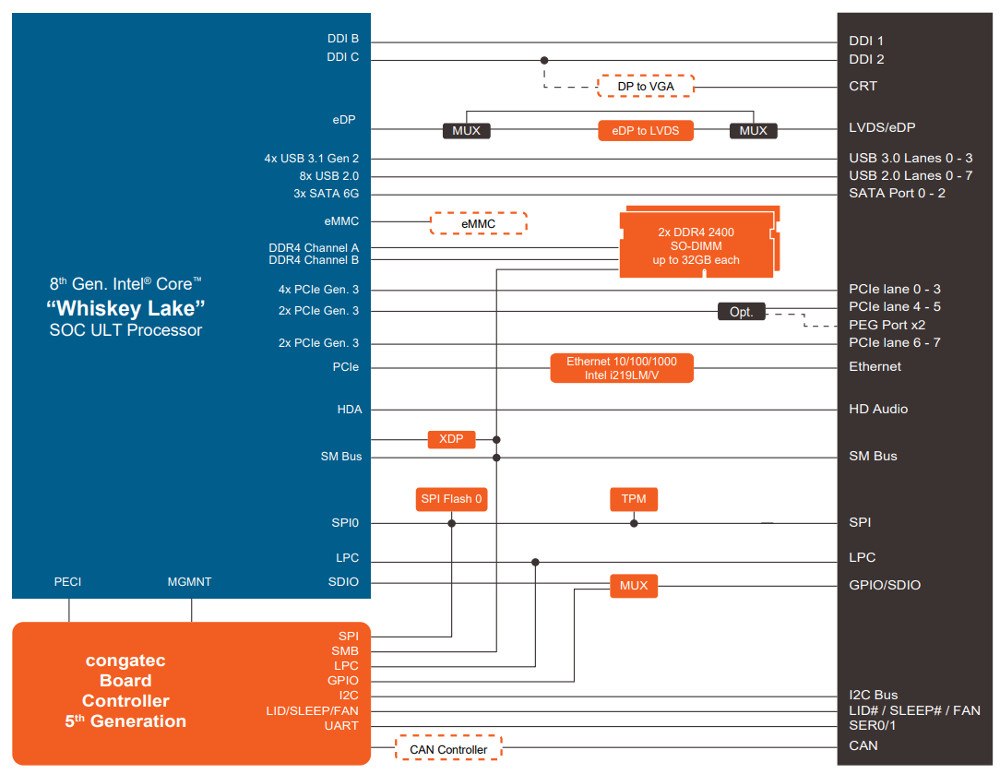

Conga-TC370 block diagram
(click image to enlarge)
For video, you get 2x DisplayPort 1.2 or HDMI 2.0a ports (or dual DP++), as well as an eDP 1.4. Other features include embedded BIOS boot, update, and security functions and optional active and passive cooling solutions.

Conga-JC370 and Conga-IC370

Aside from the new processor models, the now shipping Conga-JC370 and Conga-IC370 appear to be the same as described in our March coverage. That report offers detailed spec lists and block diagrams.

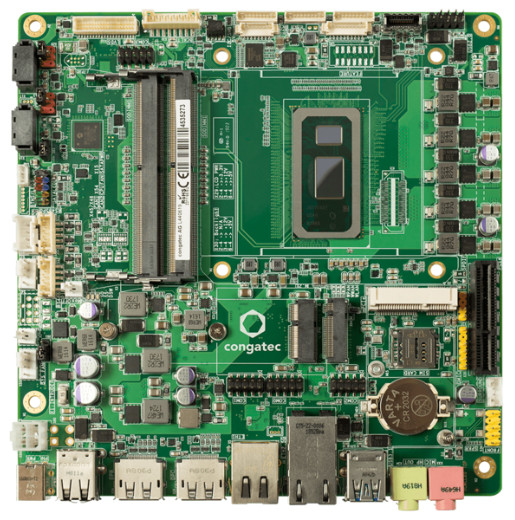

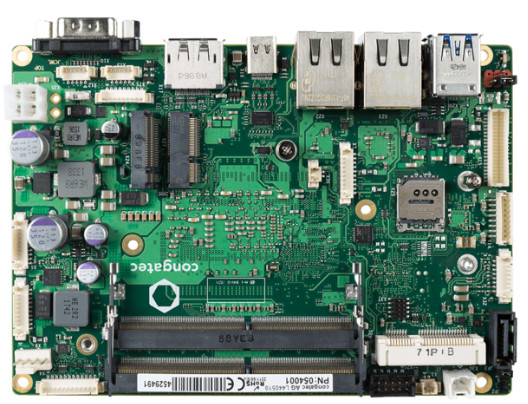

Conga-JC370 (left) and Conga-IC370
(click images to enlarge)
The 146 x 102mm Conga-JC370 appears to be Congatec’s first 3.5-inch SBC. Display features include a DP++ port, with the possibility of a second DP port via the USB 3.1 Gen 2 Type-C port. The Type-C can also draw power as an alternative to the 12-24V DC input. In addition to the standard LVDS or eDP interface, there’s an option for a second LVDS via an adapter.

— ADVERTISMENT—

Advertise Here

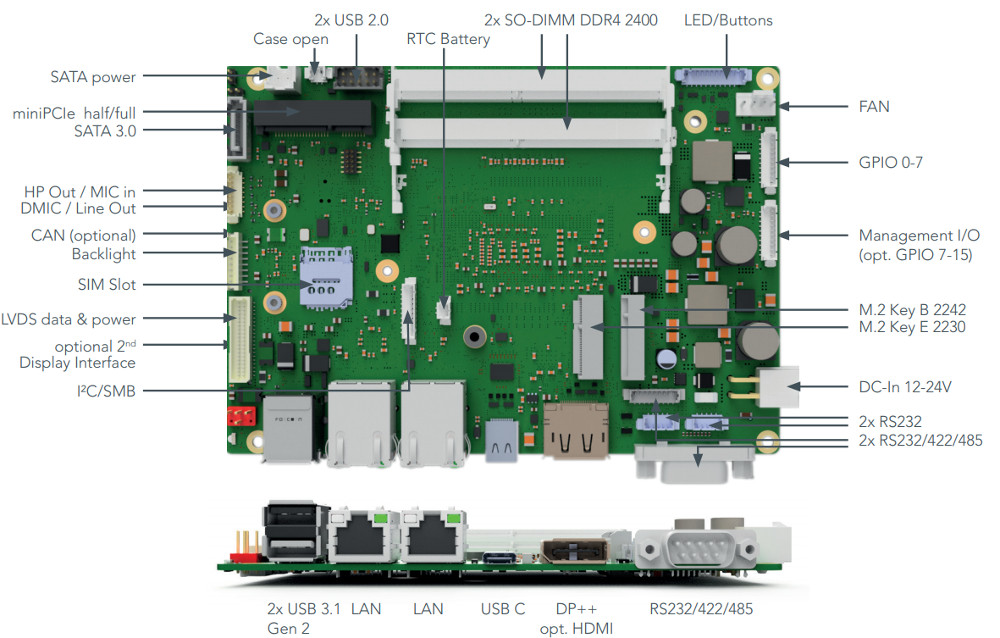

Conga-JC370 detail view
(click image to enlarge)
One of the 2x GbE ports support TSN. Other features include 2x USB 3.1 Gen 2 ports, an RS232/422/485 port, and internal USB 2.0, serial, GPIO, powered SATA III, and optional CAN interfaces. For expansion, there’s a mini-PCIe slot and micro-SIM slot, as well as an M.2 M-key storage slot with Optane support and general-purpose M.2 B- and E-key slots.

The 170 x 170mm Conga-IC370 thin Mini-ITX board shares several features with the Conga-JC370, including 2x GbE ports, a single USB 3.1 Gen. 2 port, and a 12-24V input. Expansion features are the same except that instead of the M.2 M-key storage socket you get a second SATA III port. The Conga-IC370 also adds a PCIe x4 slot.

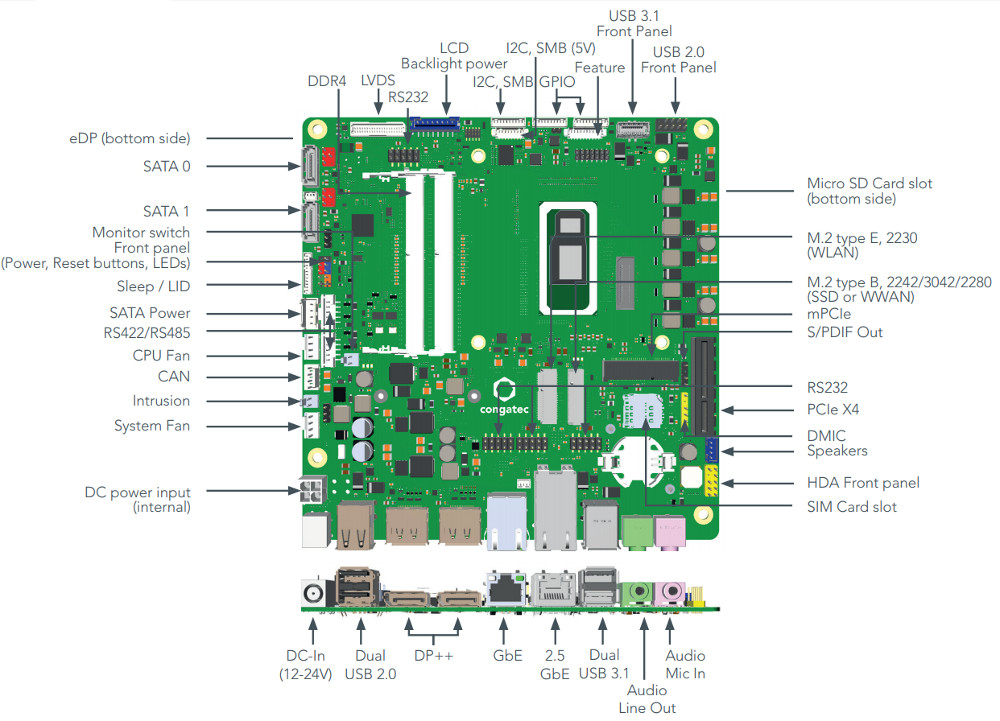

Conga-IC370 detail view
(click image to enlarge)
The Conga-IC370 lacks the 3.5-inch model’s Type-C port, but you get dual DP++ ports, LVDS, and eDP. For audio, there’s SPDIF in addition to dual audio jacks. The dual USB 2.0 interfaces have been expressed as coastline ports.

Further information

The Conga-TC370, Conga-JC370, and Conga-IC370 are available now, with pricing undisclosed. More information may be found in Congatec’s 8th Gen UE announcementand the Conga-TC370Conga-JC370, and Conga-IC370 product pages.

This article originally appeared on LinuxGizmos.com on June 12.

Congatec | www.congatec.com
