Tiny, Single-GbE Arm Networking SBC Runs Linux

By Eric Brown

Gateworks has spun a 100 mm x 35 mm, single-GbE “Newport GW6100” networking SBC, which follows a recent dual-GbE “GW6200” model. Both run Linux on a dual-core Cavium Octeon TX SoC and offer mini-PCIe expansion and -40 to 85°C support.

In Nov. 2017, when Gateworks unveiled its Newport family of Linux-driven, Octeon TX based SBCs with the 105 mm x 100 mm, dual GbE port Newport GW6300, it promised several more models in 2018. The 140 mm x 100 mm, 5-GbE port Newport GW6400 was announced in May along with a GW6404 sibling that swaps two of the GbE ports to SFP ports. Now, the company has launched the single-GbE port GW6100 model, which had been scheduled for a 2018 Q2 arrival. There was no announcement of the GW6100, which was discovered by CNXSoft, nor of the dual-port, 100 mm x 75 mm GW6200, which now has a product page (see farther below).


Newport GW6100 (left) and recent Newport GW6200
(click images to enlarge)Like the other Newport SBCs, the new entries run OpenWrt or Ubuntu on Cavium’s networking focused Octeon TX SoC, which has Cortex-A53 like ”Thunder” cores. The embedded-oriented Octeon TX competes directly with NXP’s QorIQ line. Optimized to run multiple concurrent data and control planes simultaneously, the headless SoC integrates security architecture from Cavium’s Nitrox V security processors.

While the Newport GW6300 and GW6400 both offer a choice of dual- (800MHz) or quad-core (1.5GHz) Octeon TX configurations, the GW6100 and GW6200 are limited to the 800MHz dual-core models. Volume orders are required to switch to the quad-core SoC or make other customizations, including boosting the standard 1GB DDR4 to up to 4GB or the standard 8GB eMMC to up to 64GB.

The Newport GW6100 and GW6200 provide OpenWrt or Ubuntu Linux BSPs with U-Boot. A full development kit is available with a power supply, passive PoE injector, JTAG programmer, and cables.

Newport GW6100

The tiny new GW6100 offers 1GB DDR4, 8GB eMMC, and a GbE port with PoE support. You can also draw power from the USB Type-C port, and there’s a JTAG connection and an I/O connector. The latter offers serial, analog, and digital I/O, as well as I2C, SPI, and power.

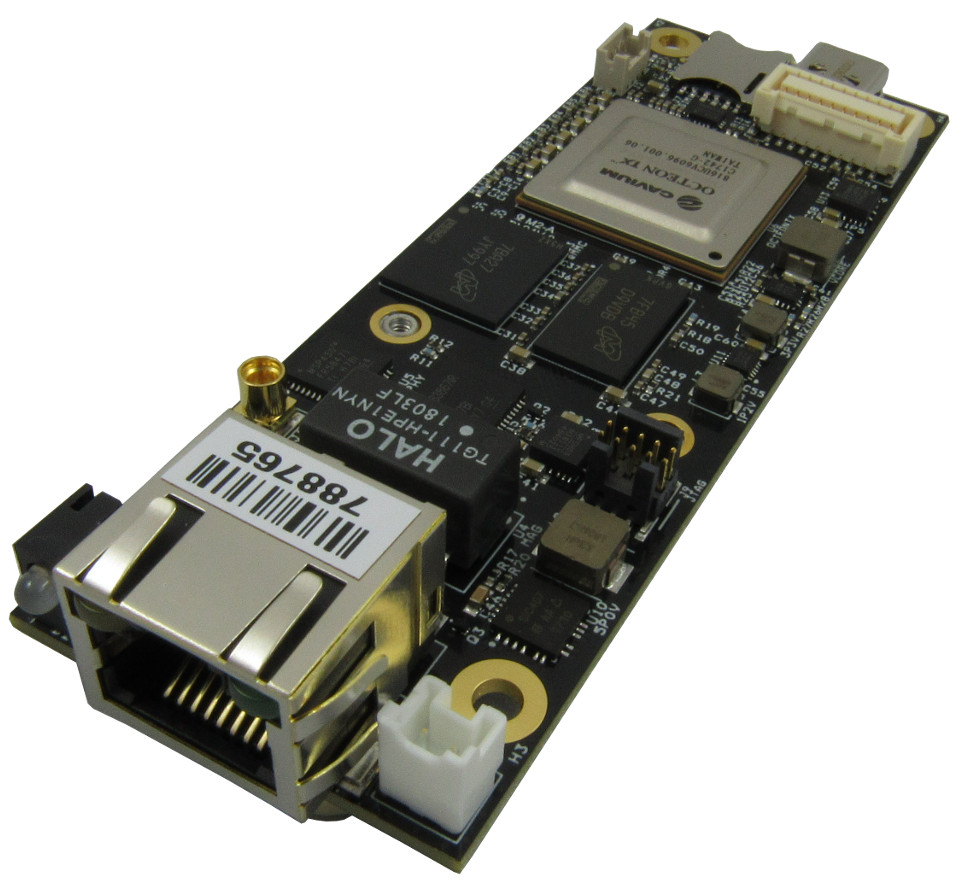

Newport GW6100 front detail view
(click image to enlarge)A single mini-PCIe slot accompanied by a nano-SIM slot supports third-party PCIe, USB 3.0, and mSATA cards. You can also choose from several Gateworks mini-PCIe options, including USB, DIO/analog I/O, microSD/USB/SIM, Femto, and IoT Radio (Sub-1GHz) modules.

GW6100 rear detail view
(click image to enlarge)Like all the Newport SBCs, the GW6100 provides standard -40 to 85°C support. There’s an 8-60V DC jack in addition to the PoE, Type-C, and power header options. Other features include reverse power protection, programmable wake-up/shutdown, a watchdog, real-time clock, and more. A Ublox GNSS receiver is optional.

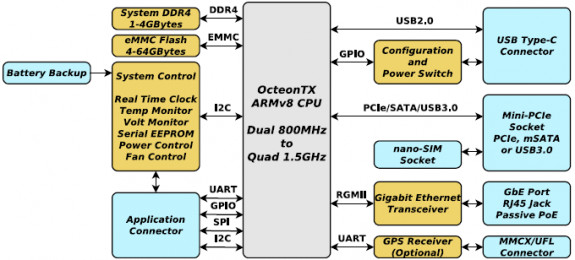

GW6100 block diagram
(click image to enlarge)
Specifications listed for the Newport GW6100 include:

• Processor — Cavium Octeon TX (2x ARMv8 ThunderX cores @ 800MHz); networking and security extensions
• Memory/storage:
  • 1GB DDR4
  • 8GB eMMC
  • mSATA (SATA III) via mini-PCIe
• Networking — Gigabit Ethernet port with passive PoE 8-60V input
• Other I/O:
  • USB 2.0 Type-C port with 1.5A, 7.5W power support
  • Application connector (serial I/O, digital I/O, analog, I2C, SPI, and power)
  • JTAG interface
• Expansion — Mini-PCIe slot with 8W power for “PCIe, USB 3.0 or mSATA with USB 2.0”; Nano-SIM slot
• Other features – Watchdog; RTC with battery; LED, tamper switch support; voltage and temp. monitor; serial config EEPROM; programmable fan controller with tach support; Optional Ublox ZOE-MQ8 GNSS GPS Receiver with PPS
• Operating temperature — -40 to 85°C
• Power:
  • 8-60V DC jack (or PoE or Type-C)
  • 0.13A @ 24VDC typical operating current
  • Voltage reverse protection
  • Programmable shut-down and wake-up
• Dimensions — 100 x 35 x 21mm
• Weight — 85 g
• Operating system — OpenWrt or Ubuntu BSPs

Newport GW6200

The 100 x 75mm Newport GW6200 adds to the GW6100 feature set with a microSD slot, a second GbE port (both with PoE), plus a second mini-PCIe slot. In place of the Type-C port you get 2x USB 3.0 ports.

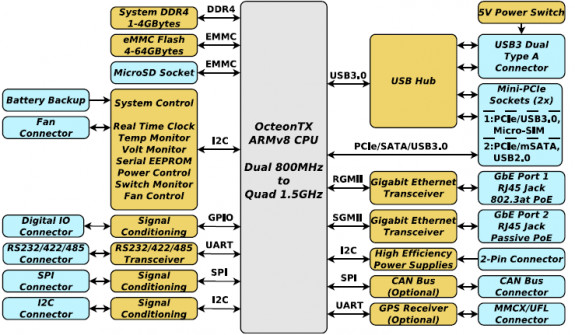

Newport GW6200 detail view (left) and block diagram
(click images to enlarge)The CW6200 is further equipped with side-mounted connectors for SPI, DIO, I2C, and either 2x RS232 or a single RS232/422/485 interface. A CAN bus controller is optional.

Further information

The Newport GW6100 and Newport GW6200 appear to be available now at undisclosed prices. More information may be found on Gateworks’ Newport GW6100and Newport GW6200 product pages.

Gateworks | www.gateworks.com
