Slim Signage Player Features Radeon E8860 GPU and 6 HDMI Ports

By Eric Brown

Ibase’s new SI-626 digital signage and video wall (VW) player combines high-end functionality with a slim 30 mm height—1.5 mm thinner than its AMD Ryzen V1000 based SI-324 player. Like the SI-324, the SI-626 features hardware based EDID remote management with software setting mode to prevent display issues due to cable disconnection or display identification failures.

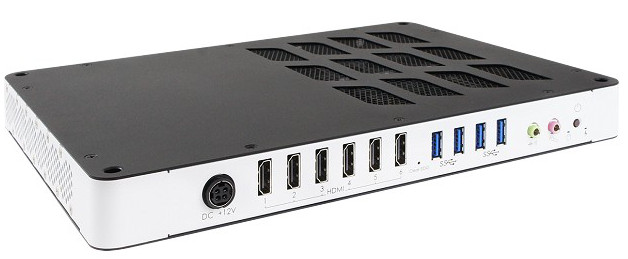

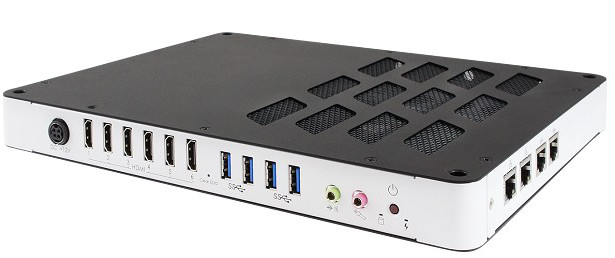

SI-626 from two angles
(click images to enlarge)
The system is notable for providing AMD’s Radeon E8860 graphics, which can drive six HDMI 1.4b displays. There’s also hardware EDID emulation for remote operation, as well as a “flexible VW display configuration setting.”

Like Ibase’s recent SI-614 and OPS-compatible IOPS-602
players, the SI-626 supports Intel’s 7th Gen “Kaby Lake” Core processors, and like the IOPS-602, it also supports 6th Gen Skylake parts. The system supports 7th and 6th Gen chips with FCBGA1440 sockets and Intel QM170 or HM170 chipsets by way of a “MBD626” mainboard.


SI-626 front view
(click image to enlarge)
The product page notes that the Core CPUs have 35 W TDPs or lower. Yet, the press release notes only one model: the quad-core 2.8 GHz/ 3.5 GHz Core i7-6820EQ from the Skylake family, which has a 45 W TDP. OS support is listed as “Win7 64-bit, Win10 64-bit Enterprise, and Linux Ubuntu 64-bit (Installation).”

The SI-626 can load up to 32GB of DDR4-2133 RAM and offers an M.2 M-Key 2280 slot for storage. There’s also a 2.5-inch SATA bay and an M.2 E-Key 2230 slot, as well as a full-size mini-PCIe slot for WiFi/BT, 4G LTE, and capture cards.

— ADVERTISMENT—

Advertise Here

The SI-626 is equipped with 6x HDMI 1.4 ports with independent audio output and “ultra-high resolution” support. You also get 4x USB 3.0 ports, 2x RS-232 serial ports with RJ45 connectors, and dual GbE ports (Realtek RTL8111G). The system is further equipped with an audio jack, watchdog, mounting brackets, and 2x LEDs.

The 290 mm x 222 mm x 29.9 mm, 2.2 kg signage player provides a 0 to 45°C range with 5 grms, 5~500 Hz, random vibration resistance (with SSD). A segregated ventilation system is said to reduce internal dust.

The SI-626 offers a 12 V DC jack with a 150 W power adapter supported with Ibase iControl power management and Observer remote monitoring technologies. These work together to provide automatic power scheduling, power failure detection, and restoration to default state in the event of a system crash. You can even boot up the system “under low ambient conditions,” says Ibase.

Further information

The SI-626 appears to be available now at an undisclosed price with a standard configuration of 16 GB RAM and a 128 GB SSD. More information may be found at Ibase’s SI-626 product page.

This article originally appeared on LinuxGizmos.com on September 20..

Ibase | www.ibase.com.tw
