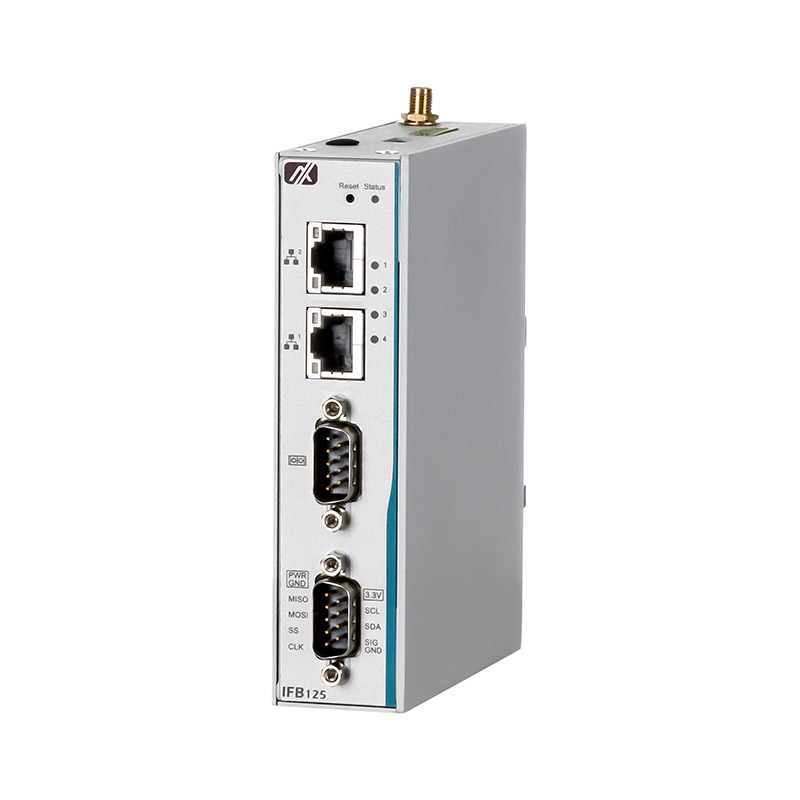

Axiomtek has introduced its latest RISC-based, DIN-rail industrial IoT gateway, the IFB125. It is powered by the Freescale i.MX6UL processor with the ARM Cortex-A7 microarchitecture. This compact IoT gateway is designed for versatility of use and quick deployment. The IFB125 is suitable for a variety of applications including applications that require remote control and monitoring management functions such as unmanned control, industrial automation, automatic parking lot control, traffic light control and more.
The IFB125 comes with multiple I/O connections including one RS-232/422/485 port, two 10/100 Mbps LAN ports, one USB 2.0 port, one 2-IN/1-OUT DIO, one I2C and one SPI. This embedded IoT gateway platform is equipped with one PCI Express Mini Card slot and one SIM card slot for wireless connectivity. It has a 256 MB onboard memory that features a fast data transfer rate of DDR3-1600. The robust IFB125 has an extended operating temperature range from -40°C to 70°C and can withstand vibration up to 5G. Its wide voltage range of 9V to 48 V DC power input with a lockable terminal block-type connector makes it suitable for use in harsh environments. The IFB125 comes with an embedded Linux operating system (Yocto) to provide an open standard OS for software program development.
Features:
- Fanless and compact gateway with a RISC-based (i.MX6UltraLite) processor at 528 MHz
- 256 MB DDR3 SDRAM and 8 GB eMMC Flash onboard
- SPI and I2C function with 3.3 V power
- Multiple I/O options include one wireless socket for Wi-Fi or 3G/4G, two digital inputs, one digital output and two LAN ports
- Wide operating temperature range of -40°C to +70°C
- Power input range of 9V to 48V DC with terminal block
- Ready-to-run embedded Linux operating system (Yocto)
Axiomtek | www.us.axiomtek.com
