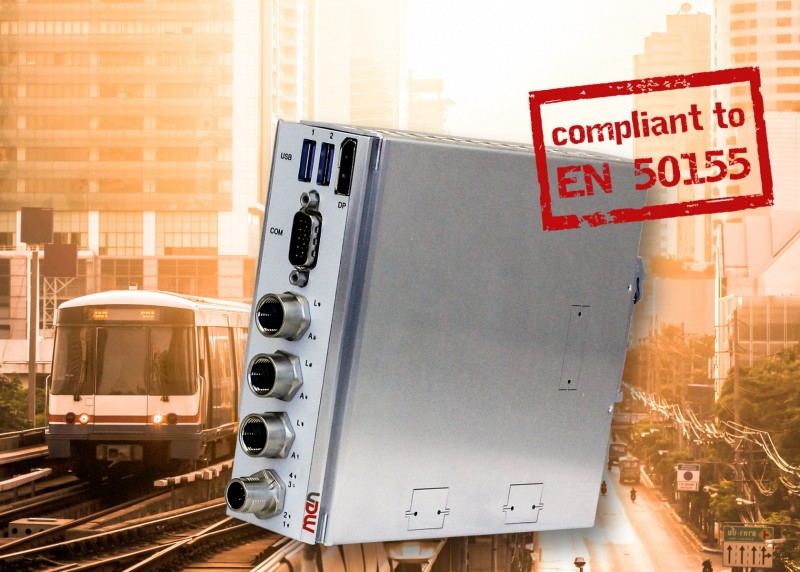

MEN Micro has announced the MC50M, a modular DIN rail box PC for embedded applications in transportation. The computer platform is based on Intel’s Atom E3900 CPU series. This makes the MC50M the ideal basis for functions such as security gateway, predictive maintenance, CCTV, ticketing systems or as a diagnostic server.
The MC50M can be used as a stand-alone product or in combination with a range of pre-fabricated extension modules, providing additional features and short delivery times. Extension modules can provide application-specific functions such as wireless communication (LTE advanced, WLAN, GNSS), MVB, CAN bus or other I/Os. A removable storage shuttle supports the integration of one to two 2.5″ SATA hard disks/SSDs. The wide range PSU allows isolated power supply from 24 V DC to 110 V DC nominal and extends the entire system to EN 50155 compliance.
The board management controller provides increased reliability and reduces downtime. The Trusted Platform Module supports security and encryption features. With the ignition switch for remote startup and shutdown control, the platform provides additional energy saving features. The aluminum housing with cooling fins ensures conductive cooling and fanless operation. The MC50M has no moving parts, so it can be operated maintenance-free.
The long-term availability of 15 years from product launch minimizes life cycle management by making the MC50M available for at least this period. MEN’s DIN rail concept is designed for flexible configuration of module combinations and is suitable for embedded IoT applications in various markets. The CPU modules can be flexibly combined with various expansion modules and power supplies.
In the modular system, the data transfer between the individual modules as well as the power supply of the components is implemented via the expansion connectors standardized by MEN.The concept specifications include housing dimensions, mounting, cooling and IP protection. In addition, the expansion connectors and their pin assignment are defined. DIN rail mounting (35 mm) is standard. Wall and 19” rack mounting is possible using adaption brackets.
MEN Micro | www.menmicro.com
