Low-Profile PCIe Board Platform

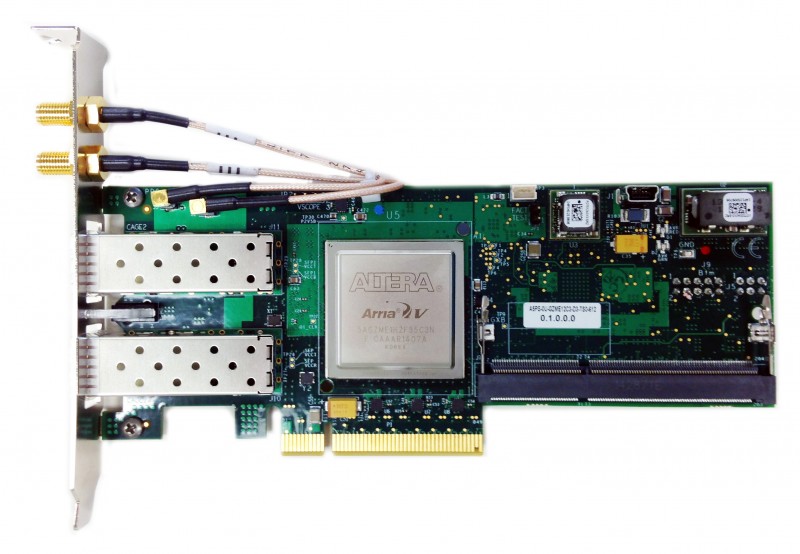

BittWare recently announced today its second low-profile PCIe board—the A5-PCIe-S (A5PS). The new board is based on Altera’s Arria V GZ FPGA, which provides a high level of system integration and flexibility for I/O, routing, and processing. Thus, the A5PS is a reliable platform for a variety of applications (e.g., network processing, security, broadcast, and signals intelligence).BittWare A5PS

Featuring dual SFP+ cages that run up to 12.5 Gbps, the A5PS provides dual 10GigE ports using optical transceivers as well as passive copper cabling up to 7 m. These ports are serviced by the advanced 28-nm Arria V GZ FPGA, which also supports a Gen3 x8 PCIe interface and either 8-GB DDR3 or 36-MB QDRII+. Sophisticated time-stamping and synchronization options are supported by dual SMA connectors for interfacing to 1-PPS or 10-MHz reference clocks, in addition to the tunable on-board high accuracy, temperature compensated oscillator (TCXO). A comprehensive Board Management Controller (BMC) with host software support for advanced system monitoring is also provided.

The A5PS features and specifications include:

  • Altera Arria V GZ FPGA
  • PCIe x8 interface supporting Gen1, Gen2, or Gen3
  • Dual SFP+ cages for 2x 10GigE: Support for a wide range of optical transceiver; built-in low-latency active drivers/receivers for passive copper cables up to 7 m
  • Memory options (pick one): DDR3 (single 72-bit bank of up to 8 GBytes DDR3-1600 with ECC); QDRII+ (two 18-bit banks of up to 144 Mb each—288 Mb or 36 MB total)
  • Board Management Controller for Intelligent Platform Management
  • USB 2.0 for programming, debug, or control
  • Timestamping and synchronization support
    • Dual SMA for reference clock/synchronization inputs
    • Tunable high-accuracy TCXO
    • Programmable clock synthesizer (Si5338)
  • Complete software support with BittWare’s BittWorks II Toolkit
  • Broad range of IP offerings
    • 10 GigE MAC
    • TCP/IP Offload Engines (TOE), UDP Offload Engines
    • PTP/IEEE-1588
    • PCIe DMA

The A5PS board currently costs $1,500 in 1000s for the A5PS with the Arria V GZ E1 with no external memory. Contact BittWare for additional configurations, pricing, and details.

Source: BittWare
