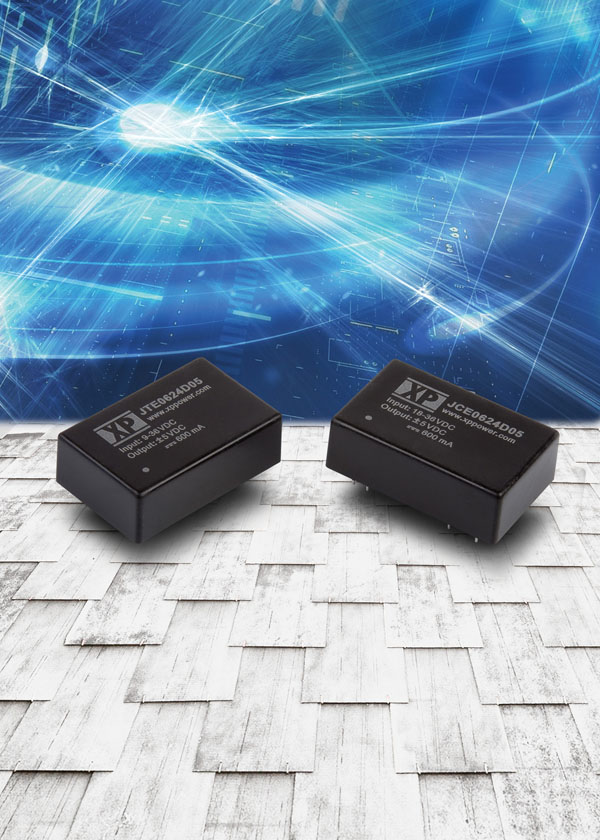

The JCE06 and JTE06 series of low-cost compact 6-W DC-DC converters are designed for a range of mobile communications and industrial and transportation applications. The converters are constructed from a plastic industry-standard 24-pin DIP through-hole mounting package. They measure 1.25“ × 0.80“ × 0.4“ (31.75 mm × 20.32 mm × 10.40 mm). The single- and dual-output units achieve a power density of 15 W per inch3 and up to 84% efficiency.
Single-output models are available with 3.3, 5, 12, 15, or 24 VDC outputs. Dual-output models provide ±3.3, ±5, ±12, ±15, or ±24 VDC outputs. The JCE06 accommodates a wide 2:1 input range. The JTE06 series is designed for an ultra-wide 4:1 input range. All models cover the popular nominal input 12-, 24-, or 48-VDC voltages.
Input-to-output isolation is 1,500 VDC across the range. The converters suit a range of operating environments in temperatures from –40°C to 100°C. No additional forced airflow or heatsinking is required, which saves valuable board space and extra cost.
An under-voltage input protection feature shuts down the converter below a set voltage to prevent damage to the converter. All models within both ranges meet EN55022 Class A conducted EMC emissions without any additional components.
Pricing for the single-output JCE06 series starts at $13.85 in 500-unit quantities. Pricing for the JTE06 series starts at $14 in 500-unit quantities.
