Fanless Industrial IoT Gateway Boasts Small Form Factor

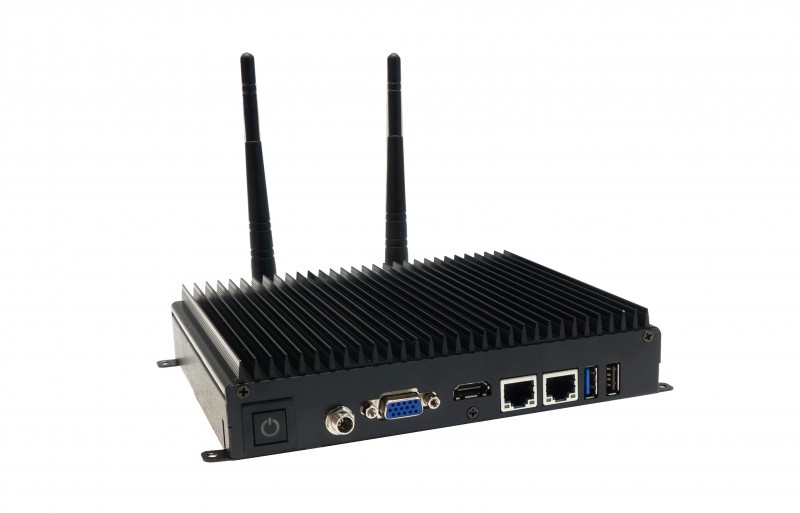

WIN Enterprises has announced the PL-80580, a fanless, small form factor for use as an Industrial IoT (IIoT) Gateway, and for networking applications requiring the small footprint and temperature tolerance of industrial applications. The small footprint of the PL-80580 (216 mm x 142 mm x 37.5 mm) also provides a good fit for robotics, cart-based medical and digital signage applications.

The unit features a choice of three Intel Atom E3800 3-D processors with Tri-gate design in single-, dual, and quad-core versions with 2x GbE LAN ports. The Intel processor is high performance, low-power consuming at 5 W, 7 w or 10 W. The E3845 SoC provides up to 1.91 GHz performance with its quad-core design. CPUs are partnered with the Intel i210AT GbE LAN controller. System I/O includes 1x USB 3.0, 2x USB 2.0, 2x Intel PCIe GbE, and 1x RS-232/422/485 & 3x RS232, plus expansion capabilities. The unit is RoHS, FCC, and CE compliant.

Features:

  • Intel Atom Processor E3800 SoC (up to 1.91 GHz)
  • Supports -10°C~60°C operating temperature range
  • 1 x HDMI, 1 x VGA1 x SATA III, 1 x Half-size mSATA
  • 2 x Intel i210AT Gigabit Ethernet
  • 4 x COM, USB 2.0, USB 3.0
  • 1 x Full-size mini-PCIe, 1 x Half-size mini-PCIe (mSATA)
  • DC 8V-32V input

WIN Enterprises will customize the PL-80580 based on customer’s specific market requirements.

WIN Enterprises | www.win-ent.com
