American Portwell Technology has announced the launch of WUX-3455, a small form factor (SFF) embedded system board featuring the Intel Celeron processor J3455, formerly code-named Apollo Lake. The Intel Celeron processor J3455 integrates the low power Intel Gen9 graphics engine up to 18 execution units, enabling enhanced 3D graphics performance and greater speed for 4K encode and decode operations. The WUX-3455 is well suited as a solution supporting visual communications and real-time computing applications in medical, digital surveillance, industrial automation, office automation, retail and more.

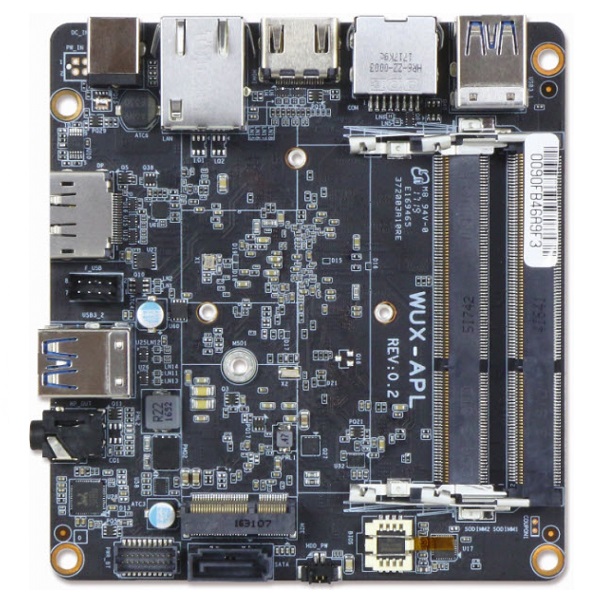

Portwell’s WUX-3455 embedded system board, designed with a compact footprint (101.6 mm x 101.6 mm; 4˝ x 4˝), also features DDR3L SO-DIMM up to 8 GB supporting 1866/1600 MT/s; 6x USB ports; one DisplayPort (DP) and one HDMI with resolution up to 4096 x 2160; one COM port for RS-232 on rear I/O (RJ45 connector); and multiple storage interfaces with 1x SATA III port, 1x microSD 3.0 socket and support for onboard eMMC 5.0 up to 64G. Moreover, it integrates the M.2 interface, which provides wireless connectivity including Wi-Fi and Bluetooth, allowing ideal communication and connectivity for IoT edge devices and designs.
The WUX-3455 operates with thermal design power (TDP) under 6W/10W for fanless applications. It also supports a wide voltage of power input from 12 V to 19 V for rugged applications. With its ingenious design and superior performance—up to quad-core processing power via Intel® Celeron processor J3455 and high capability—the Portwell WUX-3455 embedded system board is equipped with the ability to execute an extensive array of applications from digital signage in public spaces through manufacturing robots and machinery transforming industrial automation, to video analytics-based appliances enhancing intelligent digital security and surveillance, to end-to-end solutions for IoT use cases.
American Portwell Technology | www.portwell.com
