45 V, Zero-Drift Op Amp Provides On-Chip EMI Filtering

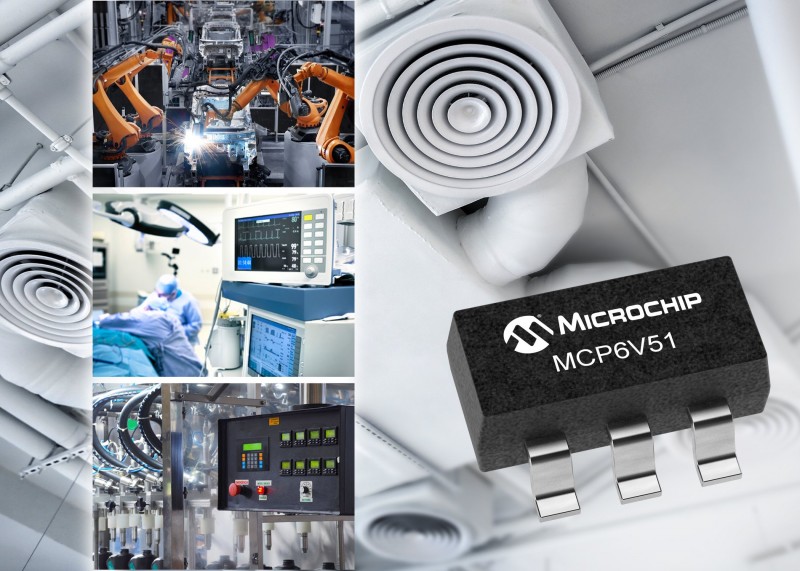

Microchip Technology has announced the MCP6V51 zero-drift operational amplifier (op amp). The new device provides ultra-high-precision measurement while minimizing the increasing influence of high-frequency interference by offering a wide operating range and on-chip electromagnetic interference (EMI) filters. The growth of industrial control and factory automation has led to an uptick in the number of sensors that need to be monitored, and the MCP6V51 amplifier is designed to provide accurate, stable data from a variety of sensors.

The self-correcting zero-drift architecture of the MCP6V51 enables ultra-high Direct Current (DC) precision, providing a maximum offset of ±15 microvolts (µV) and only ±36 nanovolts per degree Celsius (nV/°C) of maximum offset drift. Ideal for applications such as factory automation, process control and building automation, the MCP6V51 also supports an extremely wide operating voltage range, from 4.5 V to 45 V.
With the proliferation of wireless sensors and capabilities, high-frequency interference within sensitive analog measurement is becoming a critical consideration. The additional on-chip EMI filtering within the MCP6V51 provides protection from these unwanted and unpredictable interference sources.

Programmable logic controllers and distributed control systems utilized within industrial automation run on a variety of voltage rails, such as 12 V, 24 V and 36 V. The MCP6V51 offers the flexibility to support a wide range of supply voltages and includes overhead to account for supply transients by supporting an operating range up to 45 V.

For evaluation, the 8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board (Part # SOIC8EV) is a blank PCB that allows the operation of Microchip Technology’s 8-pin devices to be easily evaluated. Each device pin is connected to a pull-up resistor, a pull-down resistor, an in-line resistor, and a loading capacitor. The PCB pads allow through-hole or surface mount connectors to be installed to ease connection to the board. Additional passive component footprints are on the board to allow simple circuits to be implemented.

The MCP6V51 is available now for sampling and volume production in both 5-lead SOT-23 and 8-lead MSOP packages. Prices begin at $0.98 USD per 10,000 units for the SOT-23-5 package.

Microchip Technology | www.microchip.com
