Wireless Remote Control of the AVMux

Written by Steve Ciarcia

In 1994, Circuit Cellar’s founder, Steve Ciarcia, asked: “What good is having ultimate control over your virtual audio/video environment if you have to get out of your chair to change the setup?” Great question. His answer was even better: “Outfit your home theater in style by adding an RF interface to the AVMux.”

In Circuit Cellar 46, Steve writes:

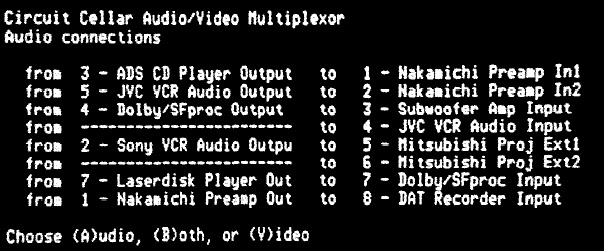

Using a couple of new chips from Maxim and Analog Devices, the AVMux facilitates effortless switching of up to eight video channels and up to eight sets of stereo audio channel pairs. Using the AVMux, I can effortlessly attach and reconfigure the connections between multiple VCRs, CD players, a Pro Logic decoder, a laserdisc player, and various other audio/video sources to the same set of amplifiers or in any number of different electronic combinations.CiarciaCC46-AVMux

With the possible exception of the actual wiring chore itself, the basic multiplexer and control unit is quite straightforward and easily constructed. Unfortunately, solving the basic switching problems only served to create further design necessities. Let me explain.

The primary problem with commercial multiplexers (when they used to be available) is that they are housed in a box much like traditional stereo equipment with all the input/output jacks on the back. Such shortsightedness on their part also requires taking a chainsaw to your expensive CWD oak stereo cabinets to widen the minuscule wire access holes to actually route all these wires.

Download the complete article.
