Semiconductor Fundamentals (Part 3)

Written by George Novacek

Transistor Topologies

In Part 2, George discussed devices built with one P-N junction, appropriately named diodes. In this article, he considers devices with more junctions. He starts with two and looks at the ubiquitous, three-terminal bipolar junction transistor (BJT). George looks at the math, science and circuitry of these devices.

Last month we dived deeper into diodes. Now it’s time to consider devices with more junctions. Let’s start with the three-terminal bipolar junction transistor (BJT). Its terminals are called collector (C), emitter (E) and base (B). Figure 1 explains its construction, which is essentially a combination of two junction diodes. Based on their connections, we have two basic structures: PNP (Figure 1a) and NPN (Figure 1b), with the transistors designated accordingly. PNP and NPN devices with similar characteristics are called complementary pairs. In the early days, germanium (Ge) was used as the base semiconductor material and although germanium NPN transistors existed, the PNP variety ruled. The first NPN transistor I got to use was the silicon (Si) type.

Figure 1 – Principle of the bipolar junction transistor. PNP (a) and NPN (b)

The first point-contact transistor was the result of the work of American physicists John Bardeen, Walter Brattain and William Shockley in 1947—an achievement for which they received the Nobel Prize in Physics. As it usually happens with many inventions, the transistor was developed independently in Europe in 1948 by Germans Herbert Mataré and Heinrich Welker. The bipolar junction transistor was then developed and patented by William Shockley in 1950 at Bell Labs.

Germanium transistors manufactured in the ‘50s by the diffusion method had many growing pains. One was a poor frequency response due to large capacitance of the diffused electrodes. But the manufacturing technology improved and by the ‘60s we had ultra-high frequency (UHF) devices, for example the amazing (for their time) AF139 and AF239 PNP transistors. Germanium devices suffered from high leakage, relatively low operating voltage and, above all, significant temperature dependency. But all that changed with the arrival of the silicon planar NPN transistor.

One issue you have to keep in mind is that transistors are current amplifiers. They’re not voltage amplifiers like vacuum tubes before them and field effect transistors (FET) today. BJTs operate in distinct modes. The first is linear, where the collector current IC = β x IB. β stands for the transistor’s current gain—generally greater than 100 in modern devices.

The second mode of operation is saturation, which is used in digital circuitry. The transistor becomes a switch. It is fully turned on with the saturated collector current determined by its type and collector-emitter voltage VCE close to zero. Or it is turned off (cut off) with IB = 0. The collector current IC would ideally be zero too, but there is always some leakage.

THREE amplifier configurations
Let’s consider the three fundamental transistor amplifier circuit configurations as seen in Figure 2. Because of the present-day prevalence of NPN transistors, I shall use them in my examples whenever possible. We begin with the common base topology (Figure 2a). The base is grounded and, therefore, common to both the input and output. To amplify an AC signal, you’ll need to bias the base to overcome the base-emitter diode’s forward voltage—around 0.65 V for silicon transistors—and cause a base current IB to flow. The current gain of the common base topology is less than 1 because the collector current IC flows through the emitter as well. The input impedance of the common base topology is very low. The voltage gain, however, is high—provided the load resistance RL is also high. It is defined by Equation 1:

Figure 2 – Three fundamental configurations of a transistor amplifier: Common base (a), common emitter (b) and common collector (c)

Common base configuration is used primarily in radio frequency (RF) circuits because it minimizes frequency-limiting collector-base capacitance. Common (grounded) emitter configuration is commonly used in amplifiers as well as switching circuits because it has the highest power gain. Similar to common base, the input impedance is somewhat low, but can be increased, at the cost of gain, by a small resistor between the emitter and ground. Here, the emitter current IE = IC+IB. The ratio IC/IE is called α and is always less than one. The relationship of the transistor currents can be expressed mathematically as:

Common collector topology is better known as emitter follower. It is frequently used for transformation of high impedance input signals to low impedance output. The current gain equals approximately β of the transistor and the input resistance, as a rule of thumb, β x RL. The gains are expressed mathematically as:

Characteristics of the three transistor topologies are summarized in Table 1. Sometime in the past, the common emitter DC gain symbol β was replaced with hFE. This is the parameter you will find nowadays in transistor specification sheets. It is an abbreviation that stands for “hybrid parameter forward current gain, common emitter.” Figure 3 is an example of a common emitter, NPN transistor collector’s I-V (current-voltage) characteristic where the base current IB is a parameter. The I-V characteristic of the base current versus base voltage is that of a diode as presented in Part 2 of this article series, available online here and the fill issue here: Circuit Cellar 351, October 2019.


Advertise Here

  Common Base Common Emitter Common Collector
Input Impedance Low Medium High
Output Impedance Very High High Low
Phase Shift 0 degrees 180 degrees 0 degrees
Voltage Gain High Medium Low
Current Gain Low Medium High
Power Gain Low Very High Medium

Table 1 – Summary of characteristics of transistor amplifier topologies

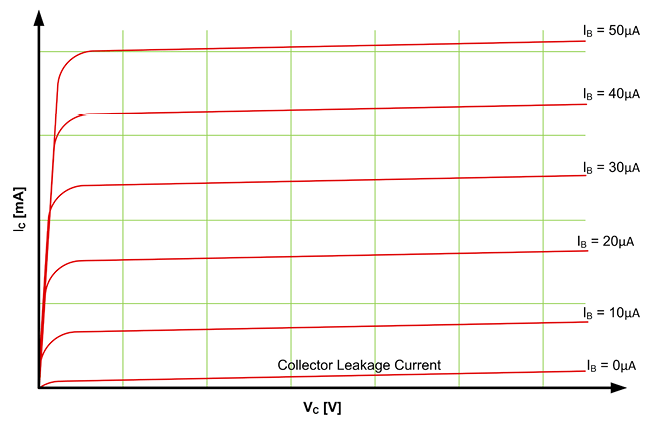

Figure 3 – Collector I-V characteristic of an NPN transistor. The graph is not to scale.

Notice that the collector current IC dependency on the collector voltage VC is quite large for small collector voltages. Once the collector current saturation is reached the current changes very little. You can analyze transistor amplifiers’ low frequency response by utilizing the transistor’s equivalent circuit. More often than not parasitic characteristics are considered negligible for the given application and, therefore, ignored. Figure 4a is the common emitter equivalent circuit. For practical reasons it is often converted into a so-called T-circuit equivalent Figure 4b.

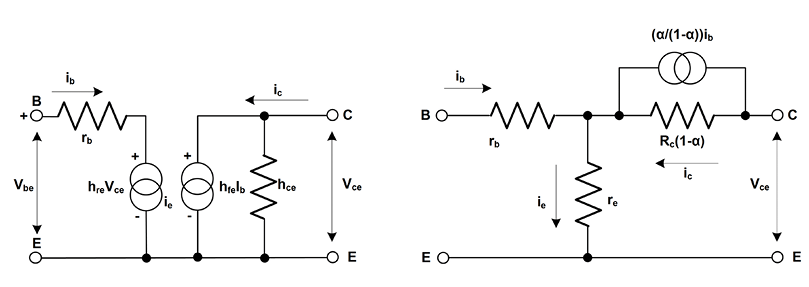

Figure 4 – Transistor equivalent circuit in common-emitter configuration
