GNU Radio for Audio DSP

Written by Ed Nisley

GNU Radio project simplifies building DSP systems, even if they’re not Software Defined Radios. This month, Ed interfaces a pair of microphones with a GNU Radio flowgraph and shows how to aim the mic response around a meeting room.

  • How to interface a pair of microphones with a GNU Radio flowgraph

  • How to synchronize the audio inputs

  • How to understand the geometry behind a simple beamsteering receiver

  • Sound Tech CM-1000 USB and analog microphone set

  • QC-20 Noise-cancelling earphones

  • Intel Edison

  • GNU Radio

We recently bought a new car sporting an audio system with a USB jack and a built-in MP3 player. I dumped an assortment of traveling music onto a USB drive, plugged it in, and discovered that the system’s Treble control had absolutely no effect on what I heard, even while sitting in a quiet garage. Unfortunately, the problem was all in my head, not the audio system: these days, my world has no treble and very little midrange.

That’s a continuation of the situation I described in my August and October 2007 columns: the pure-analog treble boost amplifier I built improved several years of concerts, even though the bulky package wasn’t practical for daily use and, alas, became less useful as my treble response continued to drop.

One member of the local hackerspace, who works on weapons-grade RF signal analysis equipment using GNU Radio as part of his day job, suggested that GNU Radio could produce an audio-frequency DSP “circuit” that would run on low-end hardware. Based on that, I decided to see what stock x86-based hardware and DSP software could accomplish, rather than build another pure analog “hearing aid.”

In this column, I’ll describe how I characterized a USB microphone and produced a simple audio beamsteering application with the GNU Radio’s DSP blocks, defining the flowgraphs with the GNU Radio Companion GUI. Even though the hardware is much less portable than my old analog amplifier, some early tests at the local Linux User Group meetings (where deploying strange tech produces interest, not suspicion) produced promising results.

SYNCHRONIZED AUDIO INPUTS

DSP circuits built with GNU Radio normally use radio frequency hardware for the initial RF amplification and downconversion to a practical intermediate frequency. Quadrature-sampling ADCs produce streams of digital data that the PC receives through a USB, PCI, or PCIe interface capable of the required data rate, with increasingly desperate techniques required for high-bandwidth signals. Compared to that, the audio-frequency data processing I need poses no bandwidth challenge at all.

I decided to use the Sound Tech USB-based tabletop conference microphones shown in Photo 1, rather than a pair of analog mics plugged into the laptop, to put the digitization as close to the mic elements as possible. The CM-1000 USB microphone on the left contains the ADC and USB circuitry, with the CM-1000 analog mic on its right plugged into a jack on its rear panel. Both units will produce stereo signals when used separately, but combining them produces a super-stereo USB microphone: each unit acts as a monaural mic, with the USB mic as the Left channel and the analog mic as the Right channel. Placing them along the length of a conference-room table would provide good sound quality, albeit with an unnaturally wide stereo image.

— ADVERTISMENT—

Advertise Here

Photo 1 The Soundtech CM-1000 USB Conference Microphone hardware defines the larger mic as the Left channel and the smaller extension mic as the Right channel. A 300 mm separation between the two mics provides a baseline for directional audio enhancement, with the floor tiles as an XY coordinate grid.
Photo 1
The Soundtech CM-1000 USB Conference Microphone hardware defines the larger mic as the Left channel and the smaller extension mic as the Right channel. A 300 mm separation between the two mics provides a baseline for directional audio enhancement, with the floor tiles as an XY coordinate grid.

The USB unit samples the analog sound signal from both mics at 44.1 kHz and sends pairs of 16 bit values to the PC. The mics lack a datasheet with a frequency specification, but, even if they’re not audiophile grade, they’re certainly good enough for my purposes.

The GNU Radio flowgraph in Figure 1 amplifies the USB microphone data values from ALSA Card 1 by a factor of 20, then displays the resulting values on an oscilloscope. If you were testing analog mics on your workbench, you’d breadboard a similar circuit from a pair of op amps, with the additional hassle of setting up power supplies and quelling the usual oscillations and noise.

figure 1 This GNU Radio flowgraph amplifies the audio data from the USB microphone and displays it on an oscilloscope. The hardware Left channel data appears on out0 and the Right channel on out1.
figure 1
This GNU Radio flowgraph amplifies the audio data from the USB microphone and displays it on an oscilloscope. The hardware Left channel data appears on out0 and the Right channel on out1.

Photo 2 shows the mic responses to an impulse sound produced by rapping a plastic box with a mechanical pencil. Because the initial peak goes negative, I think the analog microphone amplifier in front of the ADC inverts the sign of the audio signal: given the simplicity of an inverting op amp circuit, I can almost see the hardware without dismantling the microphone case. If that matters, you can flip the sign with a negative amplifier gain, which is certainly easier than rewiring an analog breadboard.

Sound waves travel at 344 m/s = 1,130 ft/s in ordinary room air, which means the same sound produces a signal in each microphone at a time depending on the distance from the sound to the microphone. With the center of the mics 300 mm apart, a sound wave requires 870 µs to travel from one to the other:

The traces in Photo 2 came from the same impulse sound produced 2 m to the left of the mics. The 900 µs delay from the blue Left mic to the green Right mic corresponds to a distance of 310 mm:

An impulse sound to the right produced a different delay between the two responses, suggesting that a simple time-of-flight delay wasn’t the only thing going on.

Photo 3 shows the mic responses to an impulse from 1.6 m directly in front, with equal distances to the mic centers. For whatever reason, the Right channel produces a response about 100 µs before the Left channel to a sound that arrives at the same time, which corresponds to a distance of 34 mm. Even if the microphone capsules are at different positions inside the USB and analog units, there’s simply not enough offset to account for that much timing difference. I can’t think of any reason to insert an analog delay, particularly in a cheap microphone intended for a conference table.

However, the delay might indicate something about the microphone’s internal structure. Digitizing the audio data at a 44.1 kHz rate means successive samples occur at 22.7 µs intervals. If the microcontroller has a single ADC input and the firmware must switch an external analog multiplexer between the analog sources for each sample, that delay corresponds to four samples. Allowing the audio signal to stabilize after each switch might account for that much delay.

Compensating for that delay would be a real nuisance on an analog breadboard (ignoring the obvious fact that it’s a digital delay), but requires only a few additional GNU Radio DSP blocks, as shown in Figure 2, to produce the neatly aligned result in Photo 4.

— ADVERTISMENT—

Advertise Here

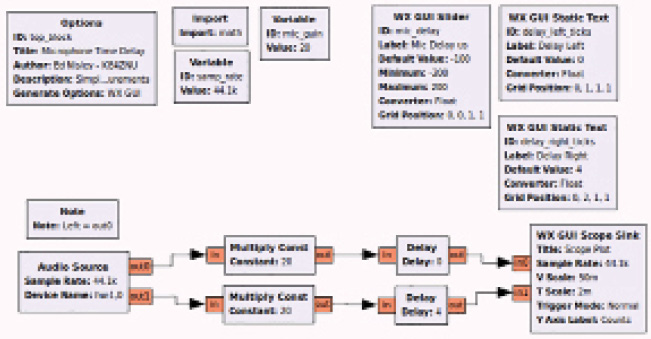

figure 2 This GNU Radio flowgraph adjusts the microphone timing to produce simultaneous outputs for a sound originating midway between them. The Mic Delay slider specifies the out0 channel delay: negative values add a positive delay to the out1 channel, because negative delays require precognition.
figure 2
This GNU Radio flowgraph adjusts the microphone timing to produce simultaneous outputs for a sound originating midway between them. The Mic Delay slider specifies the out0 channel delay: negative values add a positive delay to the out1 channel, because negative delays require precognition.

The GUI slider control in the upper left of Photo 4 sets the delay of the Left channel with respect to the Right channel. The default –100 µs delay means that the Left channel should be advanced by 100 µs: you must look ahead to data that might not have arrived.

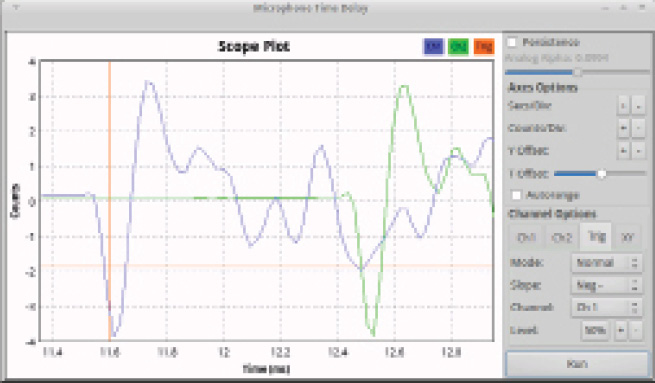

photo 2 The CM-1000 microphones produce nearly identical responses to a click 2 m to their left, with a 900 µs delay roughly equal to their physical separation divided by the speed of sound.
photo 2
The CM-1000 microphones produce nearly identical responses to a click 2 m to their left, with a 900 µs delay roughly equal to their physical separation divided by the speed of sound.
Photo 3 The Left microphone responds 100 µs later than the Right mic to a click made directly between them at 1.6 m distance.
Photo 3
The Left microphone responds 100 µs later than the Right mic to a click made directly between them at 1.6 m distance.
Photo 4 The delay required to align the two channels represents four ticks of the 44.1 kHz audio sampling clock: the nominal 100 µs delay becomes 90.7 µs.
Photo 4
The delay required to align the two channels represents four ticks of the 44.1 kHz audio sampling clock: the nominal 100 µs delay becomes 90.7 µs.

Because the current version of GNU Radio doesn’t support precognition, the two Delay blocks convert the signed delay into a positive delay for the appropriate channel. A value of –100 µs doesn’t advance the Left channel into the future, it pushes the Right channel into the past by +100 µs. A +100 µs value delays the Left channel, which I won’t need but you might. In each case, the other channel delay becomes 0 µs.

However, the Delay blocks contain queues of samples and require an integer delay value specifying a number of samples, rather than a time delay in (micro)seconds. The snippets of Python code in Listing 1 decide which channel must be delayed, then convert the delay from microseconds into the corresponding number of samples; the top line calculates the Left delay and the bottom line handles the Right delay.

The nearly exact alignment of the two traces in Photo 4 show that a 100 µs delay, which becomes 90.7 µs when expressed as four 44.1 kHz samples at 22.7 µs each, compensates for the offset between the two channels. We’ll never know what actually happens inside that USB microphone, but the evidence so far certainly suggests a monaural ADC alternating between incoming analog audio signals.

BEAMSTEERED RECEPTION

Figure 3 shows the geometry behind a simple beamsteering receiver. If the distant source (sketched as a small speaker) was directly ahead, its sound would arrive simultaneously at both microphones. As you’ve just seen, the “circuit” in Figure 2 produces that result, even for microphones with slightly misaligned temporal responses.

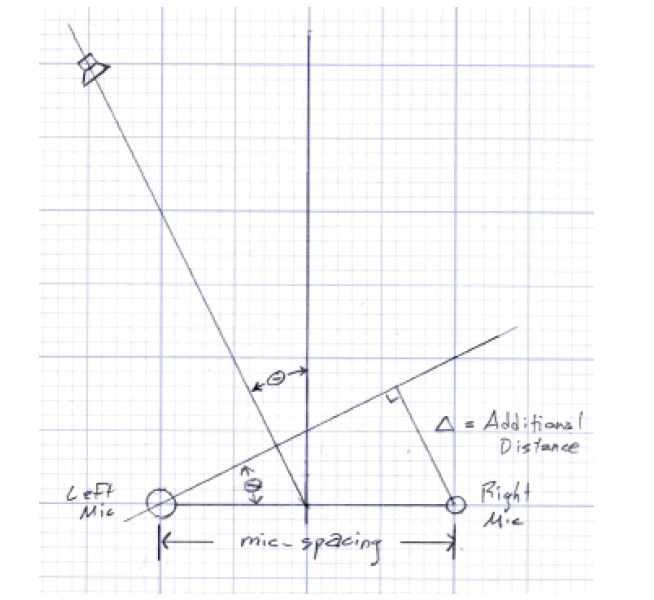

figure 3 The sound from a distant source arrives at the microphones at different times. The delay for the additional distance depends on the angle to the source and the microphone spacing, not the overall distance to the source.
