FreeRTOS – Part 5: FreeRTOS+POSIX

Written by Bob Japenga

Bob continues his article series about the open-source FreeRTOS. In Part 5, Bob looks at the FreeRTOS+POSIX library of functions. He explores what POSIX is, what value the POSIX standard provides to embedded developers and how compatible FreeRTOS is to the POSIX standard.

A number of years ago, a book came out entitled Real Men Don’t Eat Quiche. (Figure 1) [1]. In the computer world t his title inspired a number of lists along the lines of “Real Engineers Don’t …” and “Real Programmers Don’t …” Included in those lists were our supposed aversion to reading specifications and manuals (in addition to the fact that “Real Engineers Don’t Know How to Spell Quiche.”) One common joke implied that only novices and cowards actually read specifications and manuals. I have found that there is a slight aversion to reading specifications and manuals among us embedded software and systems designers. But we avoid them only at our peril. In fact, with the advent of our super-complex microprocessor chips, any designer who doesn’t read the datasheets and the errata sheets does so at the peril of the entire project.

Figure 1
The title of the iconic book Real Men Don’t Eat Quiche inspired clever lists in the computer world like  “Real Engineers Don’t …” and
“Real Programmers Don’t …”.

Needless to say (perhaps admitting my cowardice and immaturity), I have read countless manuals and specifications in my time. One aphorism that I have found to be true is that “Real Engineers Don’t Write Good Manuals and Specifications.” One reason we accuse ourselves of not reading them is because they are so often wrong, misleading and don’t have the information that we need. So, we instead read the source code or look at the schematics.

This month we are going to look at the POSIX library that can be used with FreeRTOS. We will look at: What is POSIX; why would we want our FreeRTOS design to use POSIX commands; and how compatible is FreeRTOS+POSIX with the POSIX standard. Unfortunately, the FreeRTOS specifications do not tell us how compatible it is with the POSIX standard. Instead we get ambiguous statements like “FreeRTOS+POSIX implements a subset of the POSIX threading API” and “With FreeRTOS+POSIX, an existing POSIX threading compliant application can be ported to run on the FreeRTOS kernel” [2].

Sounds great—but what if my existing POSIX threading compliant application uses APIs that are not part of the subset? And who has written a POSIX compliant application that only used the POSIX threading API? To top it off, I cannot find anywhere in the FreeRTOS directory a list of what POSIX threading functions have been excluded in the FreeRTOS+POSIX.

Perhaps this is why “Real Engineers Don’t Read Specifications.” They don’t tell us what we need. But “Real Engineers Read Circuit Cellar.” So, read on and see if I can fill in the gap on this.

WHAT IS POSIX?

I’ve gotten slightly ahead of myself because I haven’t explained to you what POSIX is. POSIX stands for Portable Operating System Interface. Wait! Where does the X come from? I am not sure, but I think it comes from the close connection between POSIX and UNIX. UNIX was initially called UNICs for Uniplexed Information and Computing Service. But according to Brian Kernighan no one knows how it morphed into UNIX. The POSIX standard is maintained by the IEEE and The Open Group (Figure 2). The POSIX.1-2017 standard is simultaneously IEEE Std 1003.-2017 and The Open Group Technical Standard Base Specifications, Issue 7. The Open Group Technical Standard Base Specification [3] is a great source for all of the function and data definitions for POSIX. Any time we wrote POSIX compliant code, we used this specification as the “bible” for how things worked. See! We do read specifications.

— ADVERTISMENT—

Advertise Here

Figure 2 The Open Group and IEEE maintain the POSIX standard.
Figure 2
The Open Group and IEEE maintain the POSIX standard.

Most commercial implementations of UNIX (for example AIX, HP-UX, Solaris and MacOS) are POSIX compliant but Linux and Android are only mostly compliant. Green Hills’ Integrity, Wind River’s VxWorks and QNX, which are popular embedded systems operating systems, claim to be POSIX compliant. But only Integrity and VxWorks are actually certified compliant [4].

ADVANTAGES OF USING POSIX?

In both the embedded world and the desktop/server world, using a POSIX compliant operating system is useful on a number of levels. The word “portable” is used in the name because that is the goal: Write your application and don’t worry what POSIX OS you use because you can always easily port it. With the ease of porting, your design team also can minimize the number of APIs that they have to learn. Every non-POSIX interface has a different way of using semaphores or tasking or message queues. With POSIX, you learn the details of just one.

Imagine that you implemented an embedded system using VxWorks but found that a new design was going to use a processor not yet supported by VxWorks but that the processor was supported by QNX. Porting the new application would be greatly simplified if you limited your OS interface to the POSIX compliant API. In one case, we had a system using the Integrity OS that had a show stopping bug that Green Hills would not fix. Porting to Linux became a trivial matter since all of the POSIX calls we used to interface with the OS were also in Linux.

One last example: Once we designed a medical system with very strict real-time constraints. We wanted to use Linux but were unsure that it could meet the hard deadline real time requirements. So, we required the designers to implement it using only POSIX compliant calls so that we could switch to QNX should the need arise. It turned out that Linux with Real-time Extensions did meet the deterministic real-time response that we required so we never needed to port to QNX. But I slept better at night knowing that I had not put all of my eggs in the real-time Linux basket. And that is the beauty of the POSIX standard. It does make re-use or re-purposing code much simpler in a wide range of scenarios.

WHAT IS FREERTOS+POSIX?

FreeRTOS+POSIX partially implements the most recent POSIX standard. Some functions are wrapper functions (semaphores for example) but others are unique functions (for example message queues). Figure 3 shows the layers of FreeRTOS+POSIX.

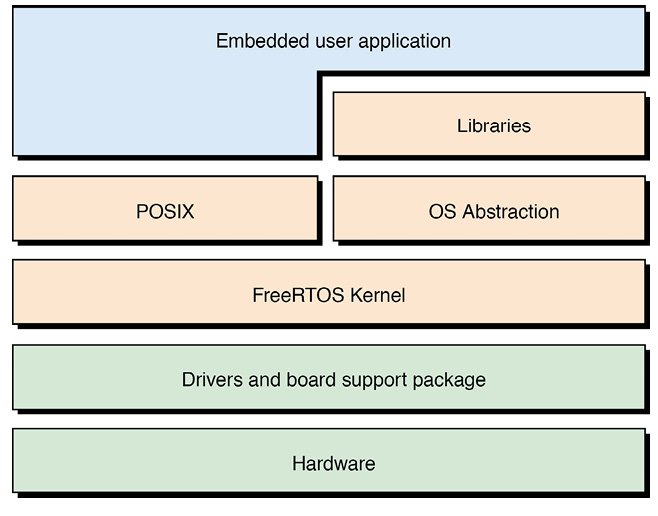

Figure 3 POSIX layers
