PICMG Prepares COM-HPC for Ratification

PICMG has announces that the COM-HPC specification has entered member review. The member review phase occurs after the technical subcommittee approves the specification and acts as a final review by all PICMG members in good standing. Reaching this approval step is a milestone in ensuring ratification will be reached in early 2021. The base specification will complement a Platform Management Interface Specification, COM-HPC EEEP, and Carrier Board Design Guide.

In conjunction with the review cycle, PICMG has published a preview specification. The abridged specification is available for public download and distribution. COM-HPC is the soon-to-be-released PICMG standard for high-performance Computer-on-Modules (COMs). COM-HPC defines five module sizes to deliver edge server performance for small, rugged data centers. The new specification will complement COM Express, which will continue to play a crucial role in the COM marketplace for many years.

PICMG developed this specification to address emerging requirements in the embedded and edge computing market. Trends, including the substantial data growth and processing requirements of broadband and 5G as well as edge analytic including AI and situational awareness applications. IoT devices, sensors, and actuators are producing tremendous amounts of data that require preprocessing at the edge for improved data processing efficiency and, end to end security. Autonomous vehicles, smart factories, smart retail, medical robotics are among many applications that will benefit from massively increased edge server and edge client class processors processor modules or COMs being available in standard modules that existing standards cannot meet.

“The working group of 26 industry-leading companies has done an excellent job, said Christian Eder, Chairman COM-HPC Technical Committee. A big thank you to the team for their collective development of this specification over a five-year investment of time and resources. The importance of the COM-HPC specification is very clear, as is our commitment to a healthy market ecosystem. We are now well prepared to address current and future requirements over multiple industries”.

TECHNICAL HIGHLIGHTS:

  • Two 400-pin BGA mount high-performance connectors
  • System Management Interface
  • Not limited to x86 processors
  • Provides for the use of RISC processors, FPGAs and GPGPUs
  • COM-HPC Client Modules
    • Up to 48 + 1 PCI Express Gen4/5 lanes
    • Up to 4x USB4
    • Up to 4x video interfaces
    • Up to 2x 25 Gb Ethernet interfaces

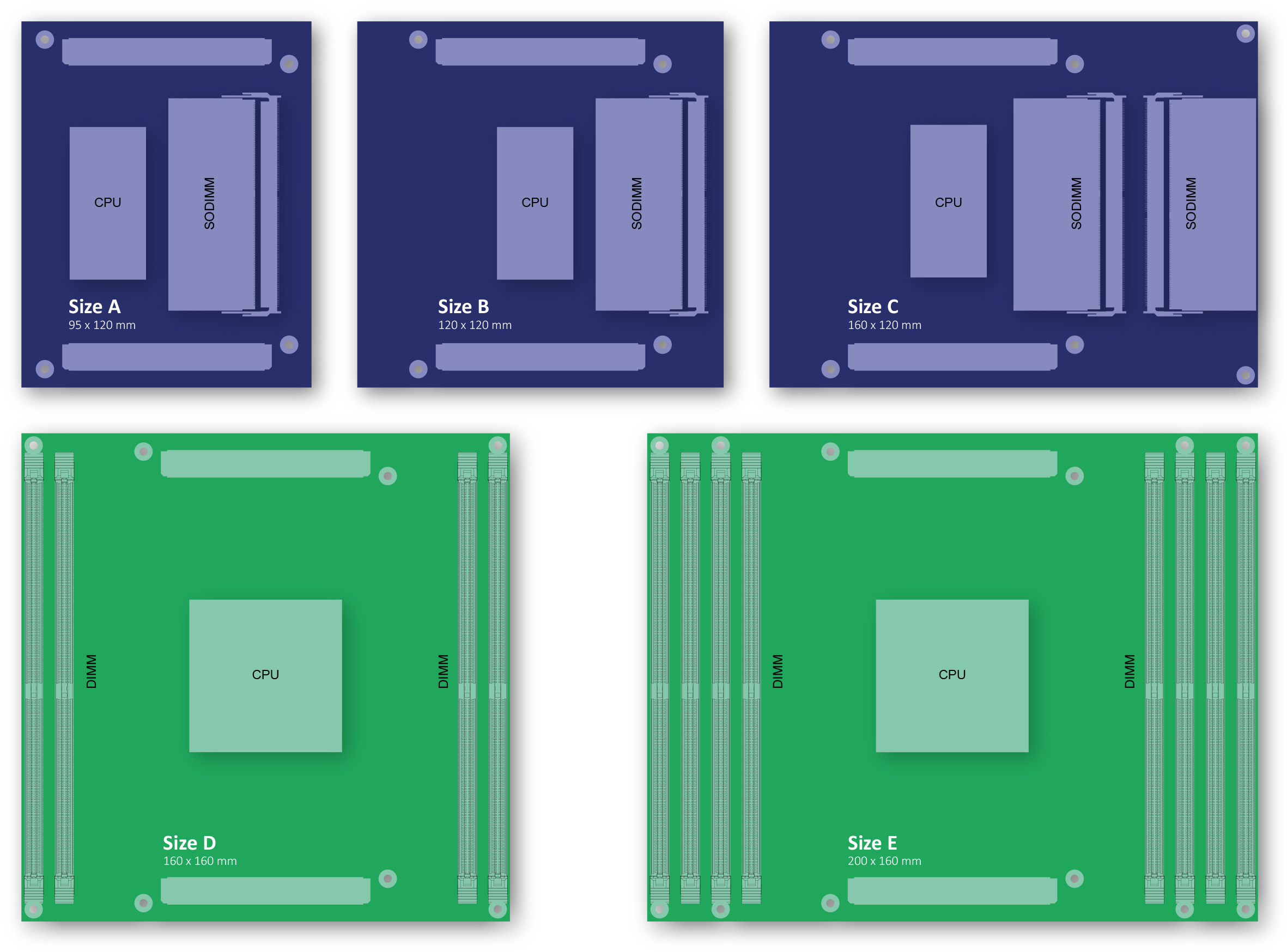

    • Module sizes:
      • Size A: 95 x 120 mm
      • Size B: 120 x 120 mm
      • Size C: 160 x 120 mm
  • COM-HPC Server Modules
    • Up to 64 + 1 PCI Express Gen4/5 lanes
    • Up to 2x USB4
    • Up to 4 graphic interfaces / headless
    • Up to 8x 25 Gb Ethernet interfaces
    • Module sizes:
      • Size D: 160 x 160 mm
      • Size E: 200 x 160 mm
CLICK TO ENLARGE

Members of the PICMG COM-HPC committee include: University of Bielefeld, ADLINK, Advantech, Amphenol, AMI, congatec, Elma Electronic, ept, Fastwel, GE Automation, HEITEC, ICC Intelligent Platforms, Intel, Kontron, MEN, MSC Technologies, N.A.T., nVent, Samtec, SECO, Supermicro, TE Connectivity, Trenz Electronic, and VersaLogic. ADLINK, congatec and Kontron are the committee sponsors. Christian Eder, marketing director of congatec, is the chairman of the COM-HPC committee. He was previously a draft editor of the current COM Express standard. Stefan Milnor from Kontron and Dylan Lang from Samtec support Christian Eder in their respective functions as editor and secretary of the PICMG COM-HPC committee.
For information about the COM-HPC specification and to access its preview document, please visit PICMG’s website https://www.picmg.org/com-hpc-overview
