August Schematic Challenge (Sponsor: Technologic Sysetms)

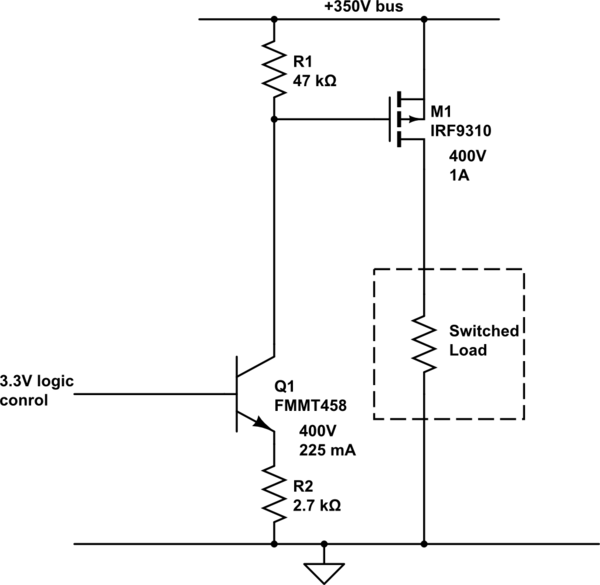

Can you spot the error in this month’s schematic challenge (sponsored by Technologic Systems)? This your chance to put your technical skills to test. Find the error in the schematic for a shot to win prizes, such as a TS-7250-V2 High-Performance Embedded Computer or a Circuit Cellar Digital Subscription.

Click to enlarge. Find the error and submit your answer via the online submission form.

Click to enlarge. Find the error and submit your answer via the online submission form.

Take the challenge now!
